One line value

Process cooling units that stabilize product between +10 and 0 °C for safe staging before trimming, marination, moulding and packaging.

Key highlights

• Target range: +10 to 0 °C for preparation, skewering, loading and unloading
• Full stainless body: AISI 304 interior and exterior
• High density sandwich insulation for tight thermal control
• Power: 380 to 400 V, 50 Hz, three phase
• Compliance: CE and EC compliant

Operating envelope

• Cooling operation between +10 and 0 °C
• Ambient design default -20 to +45 °C, extended -60 to +60 °C on request

Size and footprint options

• Outer size guide: length 2.00 m to 9.99 m, width 1.60 m to 2.99 m, height 2.40 m to 2.99 m
• Inner size guide: length 1.40 m to 7.00 m, width 1.10 m to 2.60 m, height 2.00 m to 2.20 m
• Insulation thickness: 120 mm compact, 150 mm mid, 200 mm large

Refrigeration power and airflow

• Compressor power for this range: compact from 8 HP, mid 12 to 15 HP, large up to 30 HP
• Evaporator and fan layout tuned for gentle airflow to avoid surface drying
• Electric defrost with timed cycles where required

Trolley capacity and doner focus

• Configurations from 1 to 8 trolleys

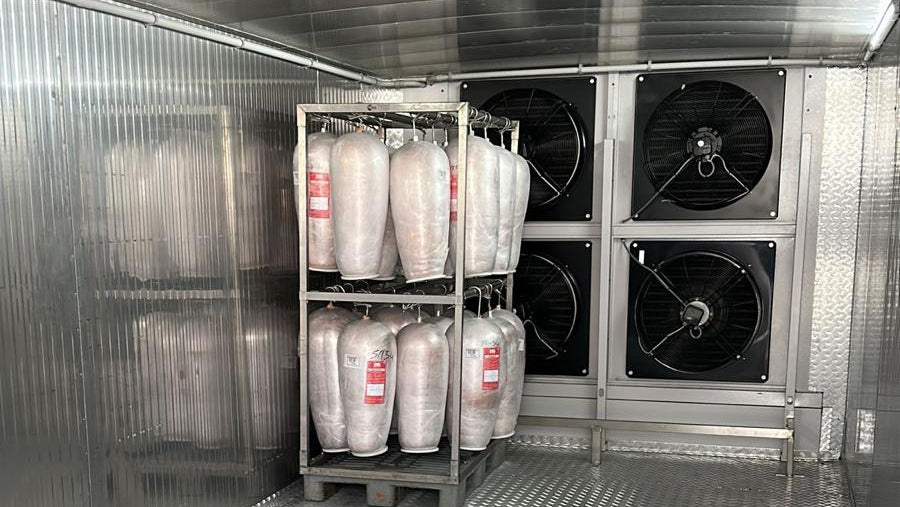

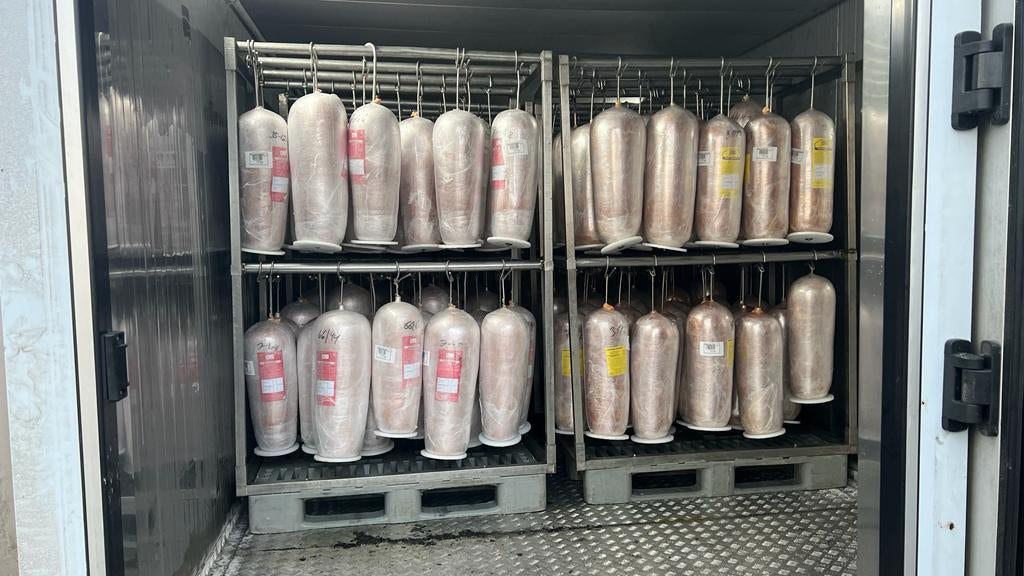

• Compatible with doner shawarma gyros hanging trolleys
standard sizes 70 x 70 x 190 cm, 80 x 80 x 190 cm, 100 x 100 x 190 cm
• Tray or rack style trolleys supported with optional guide rails and stopper sets

Example layouts
1 trolley compact unit for single line staging
2 trolleys for small plants with frequent door cycles
4 trolleys for mid size lines that feed moulding or packing
6 trolleys for high throughput prep rooms
8 trolleys for peak hour operations

Performance and capacity

• Daily buffer capacity guide
compact up to 2 tons per day
mid up to 5 tons per day
large up to 9 tons per day
• Temperature uniformity with balanced airflow for stable product core temperatures

Construction and hygiene

• AISI 304 stainless interior and exterior
• Smooth food contact geometry for easy sanitation
• Cold room LED lighting

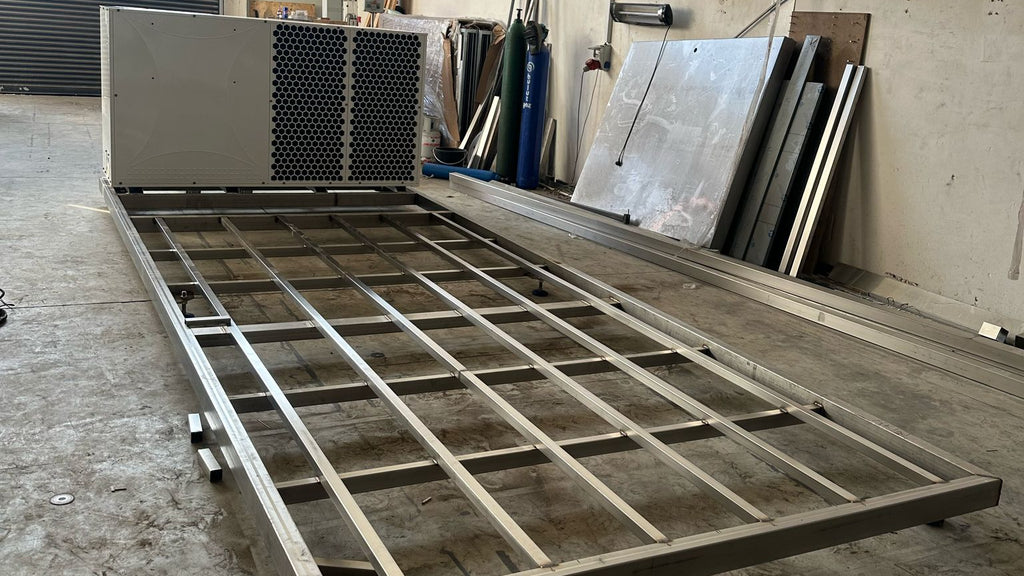

• Floors engineered for trolley traffic and heavy static loads

Layout options

• Hanger rails, skewer locks, trolley guide rails, stopper sets
• Personnel or service door options
• Documentation pack for regulated facilities on request

Advantages of FrostFlex units

Installation and commissioning
• Plug in modular body, no on site panel build

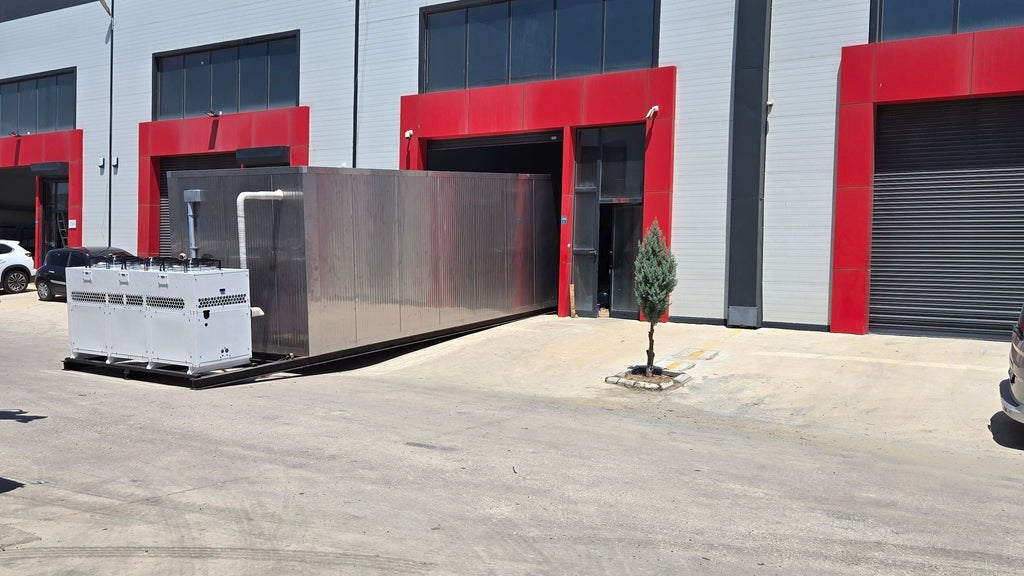

• Indoor or outdoor placement where power is available
• Factory built and factory tested for quick start up

Energy and performance
• Optimized insulation and airflow for lower daily kWh
• Stable +10 to 0 °C control under frequent door openings
• Faster pull down compared to many fixed rooms in similar size

Hygiene and durability
• AISI 304 stainless inside and outside
• Easy to clean surfaces with cold room rated hardware
• Long service life in heavy duty environments

Mobility and scalability
• Relocatable when the plant expands or moves
• Capacity can grow from 1 trolley up to 8 trolleys
• Multiple units can run in parallel

Controls and safety

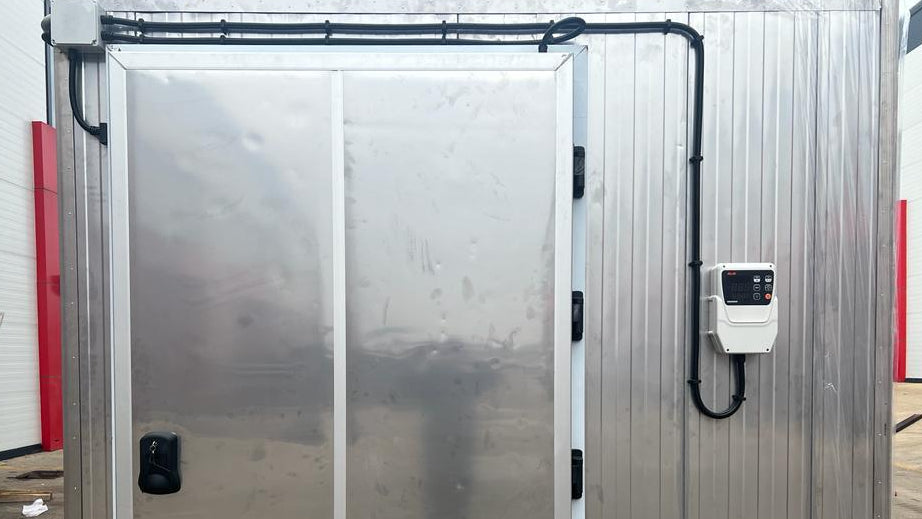

• Industrial control panel with setpoint and alarms
• Optional remote monitoring and notifications
• HACCP style data logging available on request

What is included

• Complete FrostFlex cooling unit set for +10 to 0 °C operation
• Industrial control panel with setpoint and alarm set
• Installation and operating manual
• On site start up and operator briefing available on request

Warranty and service

• Standard warranty 1 year
• Technical services include remote diagnostics, on site maintenance, spare parts program

Typical applications

• Doner shawarma gyros lines during trimming, marination staging and moulding
• Meat and poultry prep rooms and central kitchens
• Buffering before slicing, mixing, moulding or packaging

Request a quote

Share daily throughput, trolley size and count, ambient conditions, preferred footprint, and electrical capacity. We will size compressor and evaporator HP correctly and propose the right configuration for your line.
